Automatic ceramic filter
Automatic ceramic filter is widely used in mineral, solid-liquid separation equipment of metallurgy and processing industry.
(1) due to the effect of wool stoma of the microporous ceramic, produced almost absolute vacuum, very dry cake are obtained.
(2) the filtrate crystal clear, no free solid particles, can reuse or discharge.
(3) compared with the traditional filtering methods, high efficiency, energy saving = 90%.

(4) no filter cloth and replace filter cloth.
(5) continuous automatic operation, low maintenance cost, solid recovery rate = 90%.
(6) no environmental pollution and easy operation.
(7) because of the excellent ceramic capillary effect and reliability of continuous automatic operation, the combination of filter cost significantly lower than the traditional vacuum filtering and pressure filtration equipment.
(8) unique filtering disk is composed of several pieces of ceramic filter board, vacuum when only the liquid through the filter plate, because the wool stoma after water is greater than the tension of the vacuum pump suction, microporous can continue strong suction filtrate. The microporous ceramic filter plate is not allowed through the air, a small vacuum pump can keep the vacuum of ceramic filter board inside, low energy consumption.
Chemical water and ultrasonic cleaning of filter plate can automatically renewable, restore full penetration performance.

Disc vacuum filter


GPT series metal disk vacuum filter fully absorb the advantages of similar foreign models, and combined with GP type coal with disc filter, for metal mineral precipitation density is big, heavy quality, fast, and the characteristics of the impact force is strong, has carried on the overall performance and reinforcement between various components and the optimization design, to ensure the metal mineral in the solid-liquid separation to obtain the more excellent dehydration.


Main features:


1, filter fan hole distribution uniformity, porosity is reasonable, the rod size is big, is made from high strength industrial plastic life increased 1-1.5 times.
2, the number of filtrate tube filter, internal use wear-resisting ceramics burn cast more durable service life to reach more than two years, distribution head of large volume, improve the effect of the extraction rate and the filtrate discharge.
3, more concentrated dry pump more automatic lubrication.
4, filter cloth wash of automatic system, and maintain its permeability, filterability.
5, adjustable mixing system, can be adjusted according to the situation of pulp, at both ends of stirring shaft adopts magnetic seal, water seal and packing seal not stable ore.
6, the main drive CVT, according to the material concentration and flow control filter plate speed, in order to achieve the most reasonable production.
7, filtrate tube and cancelled the filter fan outlet flange connection, and use directly welding mold positioning, ruled out because the original flange joint leak proof rubber gasket aging and produce the possibility of leakage.
8, for a few more thin material, USES the crescent type control panel, further reducing the finished water.
By reverse blowing 9, unloading, easier to filter cake, friction reducing discharge scraper and filter cloth, improve the service life of filter cloth.

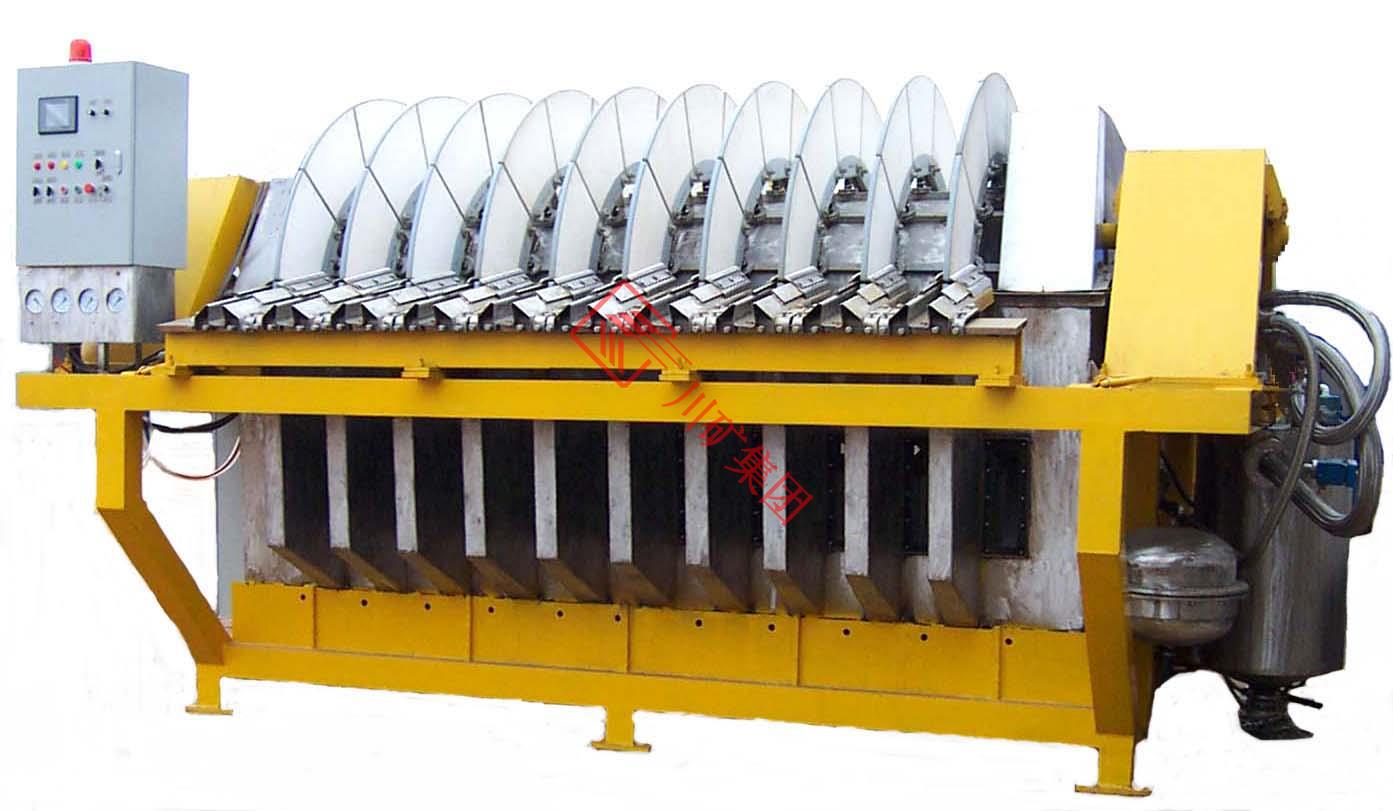

Full automatic ceramic filter
Model	Disk track mm	Filter area m2	Plate number	Tank volume m3	Spindle motor power KW	Stirring motor power KW	Moisture content	Capacity t/h	Size mm		Vacuum pump capacity m3/h
									Length	Width×Height
GPT2.5-1	1500	2.5	1	0.7	2	2	8%-10%	1.5-2.1	-	---	3.5
GPT5-2		5	2	1.2	2	2		3-4.1	-		7.5
GPT7.5-3		7.5	3	1.7	2	3		4.2-6.3	-		12
GPT10-4		10	4	2.2	3	3		6-8.2	-		15
GPT12.5-5		12.5	5	2.7	3	3		7.2-10.5	-		18
GPT10-2	2100	10	2	1.2	3	3		6-8.5	2535	2480x2690	15
GPT15-3		15	3	1.8	3	3		10-15	2925		21
GPT20-4		20	4	2.4	3	3		14-16	3315		30
GPT25-5		25	5	3	4	4		17.5-20	3705		37
GPT30-6		30	6	3.6	4	4		21-24	4095		45
GPT35-7		35	7	4.2	5.5	5.5		24.5-28	4485		55
GPT40-8		40	8	4.8	5.5	5.5		28-32	4875		60
GPT45-9		45	9	5.4	5.5	5.5		31.5-36	5265		65
GPT48-4	3100	48	4	5.7	5.5	5.5		38.4-48	4175	4205x3740	81
GPT60-5		60	5	7.1	5.5	5.5		48-60	4675		91
GPT72-6		72	6	8.5	7.5	5.5		57.6-72	5175		108
GPT84-7		84	7	9.9	7.5	7.5		67.2-84	5675		126
GPT96-8		96	8	11.3	7.5	11		76.8-96	6175		144
GPT108-9		108	9	12.7	11	11		86.4-108	6675		166
Full automatic ceramic filter
Model	TC-3	TC-8	TC-12	TC-16	TC-20	TC-24	TC-30	TC-36	TC-45	TC-60	TC-80
Number of plate	36	48	72	96	120	96	120	144	180	180	240
Number of disk	3	4	6	8	10	8	10	12	15	15	20
Filter area(Each ring (m2)	1	2	2	2	2	3	3	3	3	4	4
Filter area (m2)	3	8	12	16	20	24	30	36	45	60	80
Disk speed （r/min)	0.5-1.5
Motor Power（kw）	1.5	1.5	1.5	2.2	2.2	2.2	2.2	3	3	4	4
Stirring motor power（kw）	2.2	2.2	2.2	3	3	3	3	5.5	5.5	5.5	5.5
Vacuity （mpa）	-0.09~-0.08
Specifications	Filter area (m2)	Installed power （kw）	Processing of copper concentrates （t/h）	Processing of zinc concentrate （t/h）	Processing of lead concentrate （t/h）	Processing of sulphur concentrate （t/h）	Processing of iron concentrate （t/h）
TC-8	8	12	8	8	10	9	14
TC-16	16	16	16	16	16	16	20
TC-24	24	20	24	28	30	24	30
TC-45	45	30	45	50	52	45	68
TC-60	60	42	65	65	70	60	90
TC-80	80	48	85	88	90	82	120
